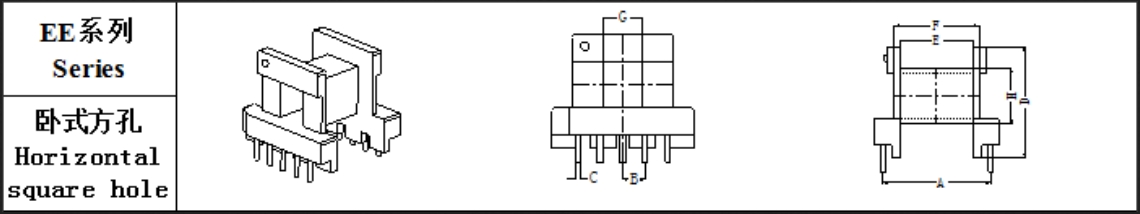

EE(卧式)方孔系列
序号型号品名ABC/ΦDEFGH完整尺寸NumberTypeModelnameB1B2G1G2H1H21EI-0801EI8.3(3+3P)-1S62.50.57.74.85.72.34.635点击查看2EI-1002EI10(4+4P)-1S82.50.510782.95.146.5点击查看3EI-1002-1EI10(4+4P)-1S82.50.59.578.352.95.13.76.1点击查看4EI-1008EI10(3+3P)-1S1330.610.76.88.610.12.811.33.8点
在线询价
序号 | 型 号 | 品 名 | A | B | C/Φ | D | E | F | G | H | 完整尺寸 | |||
Number | Type | Model name | B1 | B2 | G1 | G2 | H1 | H2 | ||||||
1 | EI-0801 | EI8.3(3+3P)-1S | 6 | 2.5 | 0.5 | 7.7 | 4.8 | 5.7 | 2.3 | 4.6 | 3 | 5 | 点击查看 | |
2 | EI-1002 | EI10(4+4P)-1S | 8 | 2.5 | 0.5 | 10 | 7 | 8 | 2.9 | 5.1 | 4 | 6.5 | 点击查看 | |
3 | EI-1002-1 | EI10(4+4P)-1S | 8 | 2.5 | 0.5 | 9.5 | 7 | 8.35 | 2.9 | 5.1 | 3.7 | 6.1 | 点击查看 | |
4 | EI-1008 | EI10(3+3P)-1S | 13 | 3 | 0.6 | 10.7 | 6.8 | 8.6 | 10.1 | 2.8 | 11.3 | 3.8 | 点击查看 | |
6 | EI-1301 | EI13(5+5P)-1S | 10 | 2.5 | 0.6 | 10.7 | 7.3 | 8.5 | 3.1 | 6.5 | 4.1 | 7.5 | 点击查看 | |
7 | EI-1301-1 | EI13(5+5P)-1S | 10 | 2.5 | 0.6 | 11.4 | 7.3 | 8.5 | 3.1 | 6.5 | 4.1 | 7.5 | 点击查看 | |
8 | EI-1302 | EI13(5+5P)-1S | 8.5 | 2.5 | 0.6 | 11 | 7.6 | 9 | 3 | 6.4 | 4.1 | 7.5 | 点击查看 | |
9 | EI-1302-4 | EI13(5+5P)-2S | 8.5 | 2.5 | 0.6 | 12 | 7.6 | 9 | 3 | 6.2 | 4.1 | 7.5 | 点击查看 | |
10 | EI-1302-5 | EI13(5+5P)-2S | 8.5 | 2.5 | 0.6 | 12 | 7.6 | 9 | 3 | 6.2 | 4.1 | 7.5 | 点击查看 | |
11 | EI-1303 | EI13(5+5P)-1S | 12.5 | 2.5 | 0.6 | 10.9 | 7.6 | 8.85 | 10 | 3.3 | 11.2 | 4.5 | 点击查看 | |
12 | EI-1303-1 | EI13(5+4P)-1S | 12.5 | 2.5 | 0.6 | 10.9 | 7.6 | 8.85 | 10 | 3.3 | 11.2 | 4.5 | 点击查看 | |
13 | EI-1304 | EI13(5+5P)-1S | 8.8 | 2.5 | 0.6 | 13 | 7.6 | 8.9 | 3 | 6.25 | 7.4 | 4.1 | 点击查看 | |
14 | EI-1315 | EI13(5+5P)-1S | 13.5 | 2.5 | 0.5 | 12.7 | 7.4 | 9.2 | 6.3 | 3 | 7.4 | 9.2 | 点击查看 | |
15 | EI-1325 | EI13(4+2+2P)-1S | 10.7 | 2.8 | 4 | 0.6 | 11.6 | 5.35 | 7.7 | 7.3 | 3.05 | 9 | 4.55 | 点击查看 |
16 | EI-1326 | EI13(5+2P)-1S | 18.2 | 3 | 0.6 | 12.2 | 7.65 | 9.2 | 3.2 | 6.25 | 4.3 | 7.7 | 点击查看 | |
17 | EI-1329 | EI13(3+3P)-1S | 13 | 3.25 | 0.6 | 12.1 | 7.8 | 9.1 | 10.1 | 3.6 | 11.2 | 4.7 | 点击查看 | |
18 | EI-1330 | EI13(5+5P)-1S | 8.5 | 2.5 | 0.6 | 11.8 | 7.8 | 9 | 6 | 3.3 | 7.1 | 4.4 | 点击查看 | |
19 | EI-1406 | EI14(3+3P)-1S | 11 | 3.5 | 0.7 | 11.1 | 5.6 | 6.8 | 5.3 | 3.8 | 6.8 | 4.8 | 点击查看 | |
20 | EI-1501 | EI15(3+2+2) | 13.6 | 2.8 | 3.2 | 0.6 | 11.6 | 5.5 | 11.5 | 4.0 | 5.4 | 10.3 | 11.9 | 点击查看 |
21 | EI-1603 | EI16(4+4P)-1S | 10.2 | 3.8 | 0.7 | 12.8 | 8.8 | 9.9 | 4.2 | 5 | 5.3 | 6.6 | 点击查看 | |
22 | EI-1604-1 | EI16(5+5P)-1S | 10.5 | 3.25 | 0.6 | 14 | 9.35 | 9.95 | 4.4 | 5.1 | 5.6 | 6.3 | 点击查看 | |
23 | EI-1604-2 | EI16(5+5+2P)-1S | 10.5 | 3.25 | 13 | 0.6 | 14 | 8.3 | 10 | 4.4 | 5.1 | 5.6 | 6.3 | 点击查看 |
24 | EI-1604-3 | EI16(3+5P)-1S | 13.5 | 3.15 | 3.15 | 0.6 | 13.5 | 8.3 | 9.8 | 4.5 | 5.2 | 6 | 6.4 | 点击查看 |
25 | EI-1604-4 | EI16(3+5P)-1S | 10.5 | 3.25 | 3.5 | 0.6 | 14 | 8.3 | 10 | 4.4 | 5.1 | 5.6 | 6.3 | 点击查看 |
26 | EI-1613 | EI16(3+3P)-1S | 9 | 3 | 0.6 | 12.8 | 8.65 | 10.1 | 4.25 | 5.2 | 5.3 | 6.35 | 点击查看 | |
27 | EI-1615 | EI16(3+3P)-1S | 10 | 5 | 0.8 | 14.9 | 9.6 | 10 | 4.3 | 5.2 | 5.5 | 6.8 | 点击查看 | |
28 | EI-1616 | EI16(4+6P)-1S | 12.2 | 3.5 | 2.7 | 0.6 | 16 | 8.35 | 10.2 | 5.3 | 4.4 | 5.9 | 7 | 点击查看 |
29 | EI-1617 | EI16(5+5P)-1S | 13 | 3.3 | 0.7 | 16.5 | 9.2 | 10.7 | 7.3 | 3.55 | 9.3 | 5 | 点击查看 | |
30 | EI-1629 | EI16(5P)-1S | 6.2 | 3 | 0.6 | 10.7 | 5.3 | 6.6 | 8.4 | 5 | 9.6 | 6.5 | 点击查看 | |
31 | EI-1630 | EI16(4+2+2P)-1S | 12 | 3.3 | 2.9 | 0.6 | 11.2 | 5.6 | 7 | 8.4 | 5 | 9.75 | 6.2 | 点击查看 |
32 | EI-1634 | EI16(5+5P)-1S | 19 | 3.25 | 0.6 | 14.9 | 8.7 | 10 | 15.1 | 4.2 | 16.7 | 5.7 | 点击查看 | |
33 | EI-1638 | EI16(5+1PIN)-1S | 9.7 | 3.0 | 0.6 | 11.3 | 4.6 | 6.6 | 7.3 | 4.9 | 8.8 | 6.1 | 点击查看 | |
34 | EI-1639 | EI16(5+2PIN)-1S | 20 | 2.9 | 0.6 | 16.5 | 8.95 | 10.9 | 10.3 | 4.3 | 11.7 | 5.7 | 点击查看 | |
35 | EI-1642 | EI-16(5+5PIN)-1S | 10.5 | 3.2 | 0.6 | 14.6 | 8.4 | 9.8 | 5.1 | 4.5 | 6.5 | 5.8 | 点击查看 | |
36 | EI-1903 | EI19(3+4P)-1S | 11 | 4 | 4 | 0.7 | 15.2 | 8.5 | 10.5 | 5.3 | 5.4 | 6.5 | 6.5 | 点击查看 |
37 | EI-1904 | EI19(3+4P)-1S | 10 | 5 | 0.8 | 16.2 | 9.1 | 10.8 | 5.1 | 5.6 | 6.6 | 7.1 | 点击查看 | |
38 | EI-1905 | EI19(4+6P)-1S | 12.2 | 2.7 | 3.5 | 0.6 | 16.8 | 9.1 | 10.9 | 5.2 | 5.3 | 7 | 6.8 | 点击查看 |
39 | EI-1908 | EI19(3+3P)-1S | 11.3 | 4.7 | 0.6 | 14.5 | 8.7 | 10.2 | 5.1 | 5.1 | 6.4 | 6.4 | 点击查看 | |
40 | EI-1909 | EI19(5+5P)-1S | 10.2 | 4 | 0.8 | 16.6 | 9.3 | 10.9 | 5.1 | 5.1 | 6.4 | 6.4 | 点击查看 | |
41 | EI-1910 | EI19(5+5P)-1S | 12.9 | 3.9 | 0.7 | 18.9 | 9.3 | 11 | 5.2 | 5.2 | 6.7 | 7.2 | 点击查看 | |
42 | EI-1914 | EI19(5+5P)-1S | 13.1 | 4 | 0.7 | 15 | 9 | 10.7 | 5.3 | 5.3 | 7.2 | 6.7 | 点击查看 | |
43 | EI-1915 | EI19(3+3P)-1S | 12.7 | 5 | 0.7 | 16.1 | 7.8 | 9.9 | 8.1 | 5.2 | 10.2 | 6.7 | 点击查看 | |
44 | EI-1916 | EI19(5P)-1S | 5.25 | 3.25 | 0.8 | 14.8 | 9.5 | 11.2 | 5.2 | 5.2 | 6.6 | 6.6 | 点击查看 | |
45 | EI-1918 | EI19(5+5P)-1S | 13 | 4 | 0.7 | 15 | 9.1 | 10.8 | 5.3 | 5.3 | 6.6 | 7.3 | 点击查看 | |
46 | EI-1919 | EI19(3+5P)-1S | 13 | 3.9 | 5.7 | 0.7 | 20.5 | 9.2 | 10.8 | 5.2 | 5.2 | 7.2 | 6.7 | 点击查看 |
47 | EI-1919-1 | EI19(3+5P)-1S | 13 | 3.9 | 5.7 | 0.7 | 20.5 | 9.2 | 10.8 | 5.2 | 5.2 | 7.2 | 6.7 | 点击查看 |
48 | EI-1924 | EI19(3+4P)-1S | 11 | 4 | 4 | 0.7 | 15.4 | 9 | 10.8 | 5.2 | 5.2 | 6.4 | 6.4 | 点击查看 |
49 | EI-1924-1 | EI19(4+4P)-1S | 11 | 4 | 4 | 0.7 | 15.4 | 9 | 10.8 | 5.2 | 5.2 | 6.4 | 6.4 | 点击查看 |
50 | EI-1931 | EI19(4+3P)-1S | 11 | 4 | 4 | 0.7 | 15.9 | 8.6 | 10.5 | 5.5 | 5.5 | 6.5 | 6.5 | 点击查看 |
51 | EI-1936 | EI-19(5+5PIN)-1S | 14.8 | 4.0 | 0.7 | 14.9 | 8.6 | 10.6 | 9.9 | 5.0 | 7.0 | 11.9 | 点击查看 | |
52 | EI-2201 | EI22(6+7P)-1S | 12 | 3.2 | 3.5 | 0.7 | 17.3 | 8.4 | 10.3 | 6 | 6 | 7.7 | 7.7 | 点击查看 |
53 | EI-2202 | EI22(5+5P)-1S | 10.2 | 4 | 0.8 | 17.3 | 8.5 | 10.5 | 6.4 | 6.4 | 7.8 | 8 | 点击查看 | |
54 | EI-2203 | EI22(5+5P)-1S | 10.3 | 4 | 0.8 | 21.3 | 8.6 | 10.6 | 6.4 | 6.4 | 8 | 7.8 | 点击查看 | |
55 | EI-2203-1 | EI22(5+5P)-1S | 10.3 | 4 | 0.8 | 22 | 8.6 | 10.6 | 6.4 | 6.4 | 7.8 | 8 | 点击查看 | |
56 | EI-2212 | EI22(5+5P)-1S | 10.1 | 4 | 0.8 | 18.1 | 9.3 | 10.8 | 6.1 | 6.1 | 7.5 | 7.6 | 点击查看 | |
57 | EI-2218 | EI22(5+5P)-1S | 10 | 4 | 0.8 | 17.5 | 9 | 10.6 | 6.1 | 6.1 | 7.6 | 7.6 | 点击查看 | |
58 | EI-2503 | EI25(5+5P)-1S | 15 | 5 | 0.8 | 18.5 | 10.7 | 12.4 | 7 | 7 | 9 | 8.2 | 点击查看 | |
59 | EI-2503-1 | EI25(5+5P)-1S | 15 | 5 | 0.8 | 17 | 10.7 | 12.4 | 7 | 7 | 9 | 8.2 | 点击查看 | |
60 | EI-2503-2 | EI25(5+5P)-1S | 15 | 5 | 0.8 | 19.7 | 10.9 | 12.5 | 6.7 | 6.7 | 9.3 | 8.3 | 点击查看 | |
61 | EI-2505 | EI25(4+4P)-1S | 12.6 | 5 | 0.8 | 19.8 | 10.8 | 12.5 | 7.2 | 7.2 | 8.8 | 9 | 点击查看 | |
62 | EI-2508 | EI25(5+8P)-1S | 15.2 | 5 | 3.5 | 0.8 | 18.8 | 10.5 | 12.3 | 7 | 6.9 | 9 | 8.2 | 点击查看 |
63 | EI-2509 | EI25(8+8P)-1S | 20 | 3.5 | 5.5 | 0.8 | 20 | 11 | 12.8 | 7.5 | 7.5 | 9 | 9 | 点击查看 |
64 | EI-2519 | EI25(4+4P)-1S | 12.5 | 5 | 0.8 | 19.2 | 10.7 | 12.6 | 7.3 | 7 | 8.8 | 8.8 | 点击查看 | |
65 | EI-2526 | EI25(2+6P)-1S | 15 | 5 | 0.8 | 24.6 | 11 | 13.4 | 7.1 | 7.1 | 8.8 | 8.8 | 点击查看 | |
66 | EI-2527 | EI25(5+8P)-1S | 15 | 5 | 3.2 | 0.8 | 19.6 | 10.6 | 12.3 | 7.2 | 6.9 | 9.8 | 8.6 | 点击查看 |
67 | EI-2808 | EI28(8+8P)-1S | 20 | 4 | 0.8 | 19.5 | 10 | 12.2 | 11.1 | 8 | 13.2 | 9.8 | 点击查看 | |
68 | EI-2812 | EI28(6+6P)-1S | 17.8 | 5 | 0.8 | 19.5 | 9.9 | 12 | 7.6 | 11 | 13.6 | 9.7 | 点击查看 | |
69 | EI-2812-1 | EI28(6+6P)-1S | 17.8 | 5 | 0.8 | 19.5 | 9.9 | 12 | 7.6 | 11 | 13.6 | 9.7 | 点击查看 | |
70 | EI-2813 | EI28(5+5P)-1S | 17.5 | 5 | 0.8 | 19 | 10.2 | 11.8 | 11.2 | 7.8 | 13.2 | 9.8 | 点击查看 | |
71 | EI-2813-1 | EI28(5+5P)-1S | 17.5 | 5 | 0.8 | 21.3 | 10.2 | 11.8 | 11.2 | 7.8 | 13.2 | 9.8 | 点击查看 | |
72 | EI-2828 | EI28(5+5P)-1S | 17.5 | 5 | 0.8 | 20.9 | 10.4 | 12.2 | 11.2 | 7.7 | 13.5 | 9.8 | 点击查看 | |
73 | EI-2901 | EI29(5+5P)-1S | 20 | 5 | 0.8 | 26.1 | 15.5 | 17.5 | 10.5 | 9.05 | 13.3 | 11.1 | 点击查看 | |
74 | EI-3001 | EI30(6+6P)-1S | 20 | 5 | 0.8 | 25.2 | 14 | 15.8 | 11.2 | 11.2 | 13.2 | 13.1 | 点击查看 | |
75 | EI-3006 | EI30(5+5P)-1S | 20 | 5 | 0.8 | 25.2 | 14 | 15.8 | 11.2 | 11.2 | 13.2 | 13.1 | 点击查看 | |
76 | EI-3010 | EI30(5+5P)-1S | 20 | 5 | 0.8 | 20 | 13.1 | 14.7 | 10.5 | 10.5 | 12.1 | 12.1 | 点击查看 | |
77 | EI-3010-1 | EI30外壳 | 22 | 点击查看 | ||||||||||
78 | EI-3015 | EI30(5+5P)-1S | 20 | 5 | 0.8 | 25.2 | 13.1 | 14.7 | 10.5 | 15.7 | 12.1 | 17.1 | 点击查看 | |
79 | EI-3015-1 | EI30外壳 | 27.1 | 点击查看 | ||||||||||
80 | EI-3301 | EI33(6+6P)-1S | 23 | 5 | 0.8 | 28.2 | 16.5 | 18.8 | 13.1 | 10.6 | 15.4 | 12.7 | 点击查看 | |
81 | EI-3302 | EI33(7+7P)-1S | 22.7 | 5 | 0.8 | 27.9 | 16.1 | 18 | 13.4 | 10.3 | 15.3 | 12.2 | 点击查看 |
